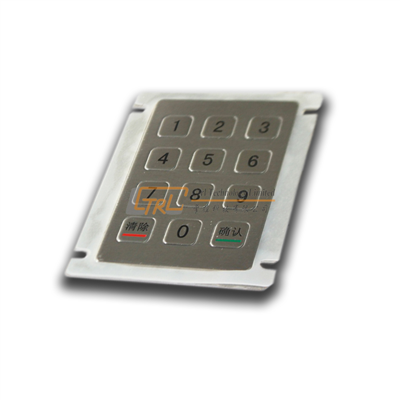

12 keys metal keypad, panel mount numeric keypad

12 keys metal keypad, panel mount numeric keypad

12 keys metal keypad, panel mount numeric keypad
12 keys metal keypad, panel mount numeric keypad
Download DOC:
  • Categories:
  • Metal Numeric Keypad
  • Model:
  • CT-S66KP
  • Application:
  • kiosks
  • Materials:
  • Stainless steel
  • Port:
  • Shenzhen / Hongkong
  • Terms of Payment:
  • L/C,Western Union,T/T
  • Update Time:
  • 07-31-2015
Contact Now
Detailed Info

Stainless steel waterproof, dustproof, anti-vandal numeric keypad.

Model No.

CT-S66KP　
TypePanel mounting metal numeric keypad　
Number of keys12 keys (10 number keys, 2 function keys)　
DimensionsFront panel66*100 mm
MaterialSUS304 stainless steel　
LayoutDifferent languages are available　
Interface (connection)USB or PS2　
Matrix3x4　
LetteringEtching and inking,  lettering by laser is optional　
Key contact technologyGold on gold (metal dome)　
Key travelApprox. 0.45mm　
Actuation force1.2 ± 0 .1 N　
LifespanMore than 10 million operations per key　
Battery lifetime> 10 years (without external power supply)　
Supply Voltage5.0VDC±5%　
Operating temperature0°～+60°　
Storage temperature-30°～+70°　
Relative humidity30%～90%　
Protection levelWaterproof / dustproofIP65 Static / IP54 Dynamic
　Vandal resistantIK07
CertificatesCE, FCC, RoHS　
OS supportWindows95/98/NT/ME/2000/2003/XP/Vista/WIN7　
MTBF>50000H　
MTTR<30min　
12 keys metal keypad, panel mount numeric keypad
  • 12 keys metal keypad, panel mount numeric keypad
KeyWords:
metal numeric keypad ,mini metal keypad ,12 keys pinpad ,metal matrix keypad ,metal pinpad
