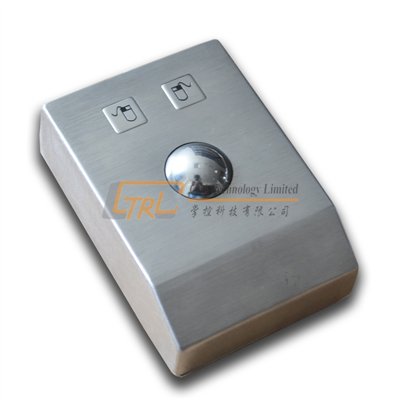

Desktop metal optical trackball, 25mm diameter

Categories:
Industrial Pointing Device

Model:
CT-S25TB-D

Material:
stainless steel

Application:
self service kiosk and industrial control

Port:
Shenzhen, Hongkong

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Stainless steel desktop 25mm trackball for information kiosk, internet kiosk, industrial control.

Model No. CT-S25TB-D 　
Type Desktop metal optical trackball 　
Dimensions Front panel 100*70*33 mm
Diameter Trackball 25 mm
Material SUS304 stainless steel 　
Interface (connection) USB, PS2 　
Lettering on keys Etching and inking, lettering by laser is optional 　
Key contact technology Carbon on Gold (Silicon rubber) 　
Key travel Approx. 1.5mm 　
Lifespan More than 10 million operations per key 　
Battery lifetime > 10 years (without external power supply) 　
Supply Voltage 5.0VDC±5% 　
Operating temperature 0°～+60° 　
Storage temperature -30°～+70° 　
Relative humidity 30%～90% 　
Protection level Waterproof / dustproof IP65 Static / IP54 Dynamic
　 Vandal resistant IK07
Certificates CE, FCC, RoHS 　
OS support Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7 　
MTBF >50000H 　
MTTR <30min 　

KeyWords:

metal optical trackball ,table top trackball ,countertop stainless trackball ,rugged trackball ,anti vandal trackball

Save / Share:

Item not found?

Release purchase info immediately.

Please send your message to us

Details

* We will reply your inquiry to this Email as soon as we see it(All fields are required.)

E-mail
	/
Title
Content	Input your info here Agree to use terms of service

Sales Director

Send

Model No.	CT-S25TB-D
Type	Desktop metal optical trackball
Dimensions	Front panel	1007033 mm
Diameter	Trackball	25 mm
Material	SUS304 stainless steel
Interface (connection)	USB, PS2
Lettering on keys	Etching and inking, lettering by laser is optional
Key contact technology	Carbon on Gold (Silicon rubber)
Key travel	Approx. 1.5mm
Lifespan	More than 10 million operations per key
Battery lifetime	> 10 years (without external power supply)
Supply Voltage	5.0VDC±5%
Operating temperature	0°～+60°
Storage temperature	-30°～+70°
Relative humidity	30%～90%
Protection level	Waterproof / dustproof	IP65 Static / IP54 Dynamic
	Vandal resistant	IK07
Certificates	CE, FCC, RoHS
OS support	Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7
MTBF	>50000H
MTTR	<30min
