Flat metal industrial keyboard

Categories:
Industrial Keyboard

Model:
CT-S190KB

Materials:
304 Stainless Steel

Port:
Shenzhen / Hongkong

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

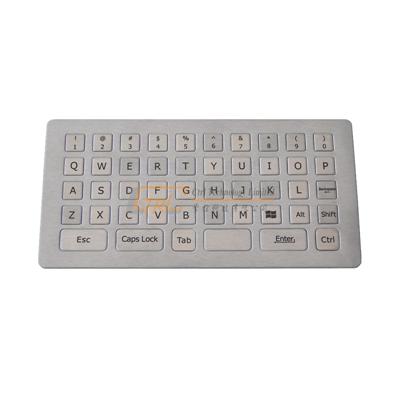

Metal stainless keyboard with 46 flat keys.

Application: Self service Kiosk, information Kiosk, internet Kiosk, internet cafe, gaming Kiosk and industrial control machine etc.

Model No. CT-S190KB 　
Type Panel mounting metal keyboard 　
Number of keys 46 keys 　
Dimensions Front panel: 190*98 mm
　 Back panel: 183*83 mm
Material SUS304 stainless steel 　
Layout Different languages are available 　
Interface (connection) USB or PS2 　
Lettering Etching and inking, lettering by laser is optional 　
Key contact technology Carbon on gold (silicon) 　
Key travel Approx. 0.45mm 　
Actuation force 1.2 ± 0 .1 N 　
Lifespan More than 10 million operations per key 　
Supply Voltage 5.0VDC±5% 　
Operating temperature 0°～+60° 　
Storage temperature -30°～+70° 　
Relative humidity 30%～90% 　
Protection level Waterproof / dustproof: IP65 Static / IP54 Dynamic
　 Vandal resistant: IK07
Certificates CE, FCC, RoHS 　
OS support Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7 　
MTBF >50000H 　
MTTR <30min 　
