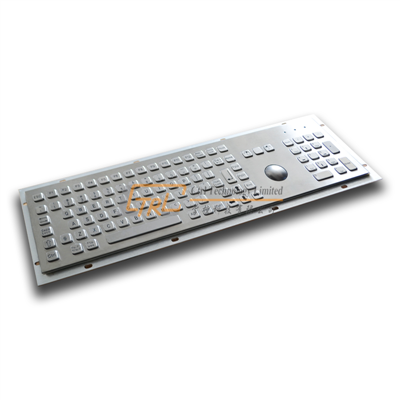

Metal Keyboard with Trackball and Numeric Keypad

Categories:
Metal Keyboard with Trackball

Model:
CT-S478TB

Application:
self service kiosk terminal

Materials:
304 Stainless Steel

Port:
Shenzhen / Hongkong

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Model No.: CT-S478TB

Type
Back panel mounting keyboard with trackball and numeric keypad
Number of keys
103 keys
Dimensions
Front panel
478*135 mm
Back panel
502*159 mm
Trackball (Diameter)
38 mm
Material
SUS304 stainless steel
Layout
Different languages are available
Interface (connection)
USB or PS2
Lettering
Etching and inking, lettering by laser is optional
Key contact technology
Carbon on gold (Silicon)
Key travel
Approx. 1.5mm
Actuation force
0.6-1.2N
Lifespan
More than 10 million operations per key
Supply Voltage
5.0VDC±5%
Operating temperature
0°～+60°
Storage temperature
-30°～+70°
Relative humidity
30%～90%
Protection level
Waterproof / dustproof
IP65 Static / IP54 Dynamic
Vandal resistant
IK07
Certificates
CE, FCC, RoHS
OS support
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Mac
MTBF
>50000H
MTTR
<30min

KeyWords:

metal keyboard with numeric keypad ,trackball and numeric keypad ,metallic keyboard with number keys ,waterproof keyboard ,dustproof keyboard ,stainless keyboard

Save / Share:

Item not found?

Release purchase info immediately.

Please send your message to us

Details

* We will reply your inquiry to this Email as soon as we see it(All fields are required.)

E-mail
	/
Title
Content	Input your info here Agree to use terms of service

Sales Director

Send

Type	Back panel mounting keyboard with trackball and numeric keypad
Number of keys	103 keys
Dimensions	Front panel	478*135 mm
	Back panel	502*159 mm
	Trackball (Diameter)	38 mm
Material	SUS304 stainless steel
Layout	Different languages are available
Interface (connection)	USB or PS2
Lettering	Etching and inking, lettering by laser is optional
Key contact technology	Carbon on gold (Silicon)
Key travel	Approx. 1.5mm
Actuation force	0.6-1.2N
Lifespan	More than 10 million operations per key
Supply Voltage	5.0VDC±5%
Operating temperature	0°～+60°
Storage temperature	-30°～+70°
Relative humidity	30%～90%
Protection level	Waterproof / dustproof	IP65 Static / IP54 Dynamic
	Vandal resistant	IK07
Certificates	CE, FCC, RoHS
OS support	DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Mac
MTBF	>50000H
MTTR	<30min
