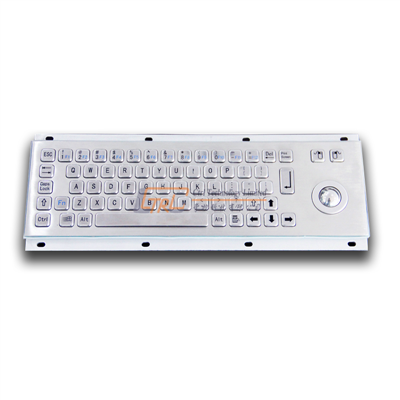

Metal Trackball Keyboard for Kiosk

Categories:
Metal Keyboard with Trackball

Model:
CT-S330TB-2

Application:
self service kiosk terminal

Materials:
304 Stainless Steel

Port:
Shenzhen, China

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Model No.: CT-S330TB

Type
Back panel mounting keyboard
Number of keys
65 keys
Dimensions
Front panel
330*100 mm
Back panel
354*124 mm
Trackball (Diameter)
25 mm
Material
SUS304 stainless steel
Layout
Different languages are available
Interface (connection)
USB or PS2
Lettering
Etching and inking, lettering by laser is optional
Key contact technology
Carbon on gold (Silicon)
Key travel
Approx. 1.5mm
Actuation force
0.6-1.2N
Lifespan
More than 10 million operations per key
Supply Voltage
5.0VDC±5%
Operating temperature
0°～+60°
Storage temperature
-30°～+70°
Relative humidity
30%～90%
Protection level
Waterproof / dustproof
IP65 Static / IP54 Dynamic
Vandal resistant
IK07
Certificates
CE, FCC, RoHS
OS support
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Mac
MTBF
>50000H
MTTR
<30min

KeyWords:

trackball keyboard in metal ,keyboard with trackball ,metallic keyboard with trackball ,kiosk keyboards ,stainless keyboard ,keyboard with rollerball mouse

Save / Share:

Item not found?

Release purchase info immediately.

Please send your message to us

Details

* We will reply your inquiry to this Email as soon as we see it(All fields are required.)

E-mail
	/
Title
Content	Input your info here Agree to use terms of service

Sales Director

Send

Type	Back panel mounting keyboard
Number of keys	65 keys
Dimensions	Front panel	330*100 mm
	Back panel	354*124 mm
	Trackball (Diameter)	25 mm
Material	SUS304 stainless steel
Layout	Different languages are available
Interface (connection)	USB or PS2
Lettering	Etching and inking, lettering by laser is optional
Key contact technology	Carbon on gold (Silicon)
Key travel	Approx. 1.5mm
Actuation force	0.6-1.2N
Lifespan	More than 10 million operations per key
Supply Voltage	5.0VDC±5%
Operating temperature	0°～+60°
Storage temperature	-30°～+70°
Relative humidity	30%～90%
Protection level	Waterproof / dustproof	IP65 Static / IP54 Dynamic
	Vandal resistant	IK07
Certificates	CE, FCC, RoHS
OS support	DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Mac
MTBF	>50000H
MTTR	<30min
