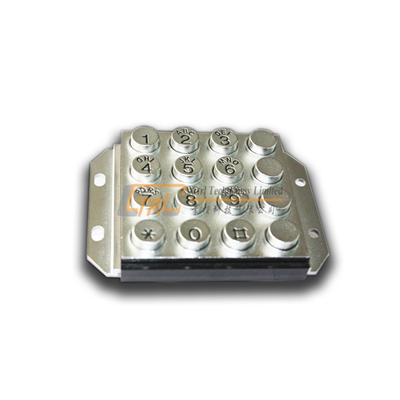

Metal keypad, panel mount numeric keypad, public phone keypad

Metal keypad, panel mount numeric keypad, public phone keypad

Metal keypad, panel mount numeric keypad, public phone keypad
Metal keypad, panel mount numeric keypad, public phone keypad
Download DOC:
  • Categories:
  • Metal Numeric Keypad
  • Model:
  • CT-S80KP
  • Application:
  • self service terminal
  • Port:
  • Shenzhen / Hongkong
  • Terms of Payment:
  • L/C,Western Union,T/T
  • Update Time:
  • 07-31-2015
Contact Now
Detailed Info

Stainless steel waterproof, dustproof, anti-vandal numeric keypad.

Model No.CT-S80KP　
TypePanel mounting metal numeric keypad　
Number of keys16 keys (10 number keys, 6 function keys)　
DimensionsFront panel80*82.50 mm
MaterialSUS304 stainless steel　
LayoutDifferent languages are available　
Interface (connection)USB or PS2　
Matrix4x4　
LetteringEtching and inking,  lettering by laser is optional　
Key contact technologyGold on gold (metal dome)　
Key travelApprox. 0.45mm　
Actuation force1.2 ± 0 .1 N　
LifespanMore than 10 million operations per key　
Battery lifetime> 10 years (without external power supply)　
Supply Voltage5.0VDC±5%　
Operating temperature0°～+60°　
Storage temperature-30°～+70°　
Relative humidity30%～90%　
Protection levelWaterproof / dustproofIP65 Static / IP54 Dynamic
　Vandal resistantIK07
CertificatesCE, FCC, RoHS　
OS supportWindows95/98/NT/ME/2000/2003/XP/Vista/WIN7　
MTBF>50000H　
MTTR<30min　

Metal keypad, panel mount numeric keypad, public phone keypad
  • Metal keypad, panel mount numeric keypad, public phone keypad
KeyWords:
public phone keypad ,metal round key keypad ,aluminum keypad ,steel keypad ,access control keypad ,secure door keypad
