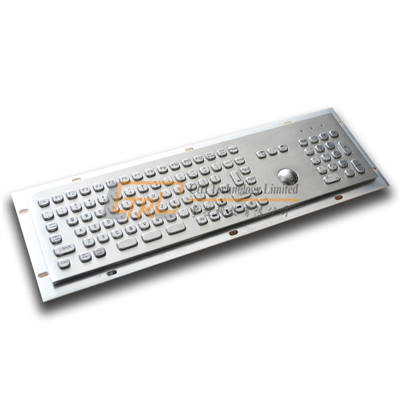

Mini 103 keys Kiosk Keyboard with Trackball and Number Keypad

Categories:
Industrial Mini Keyboard

Model:
CT-S370TB

Application:
self service kiosk terminal

Materials:
304 Stainless Steel

Port:
Shenzhen, China

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Model No. CT-S370TB
Type MINI type panel mounting keyboard with trackball and numeric keypad
Number of keys 103 keys
Dimensions Front panel: 370*103.5 mm
Back panel: 394*127.5 mm
Diameter of trackball: 25 mm
Main Material SUS304 stainless steel
Layout Different languages are available
Interface (connection) USB or PS2
Lettering Etching and inking, lettering by laser is optional
Key contact technology Carbon on gold (silicon)
Key travel Approx. 1.5mm
Actuation force 0.6- 1.2 N
Lifespan More than 10 million operations per key
Supply Voltage 5.0VDC±5%
Operating temperature 0°～+60°
Storage temperature -30°～+70°
Relative humidity 30%～90%
Protection level Waterproof / dustproof: IP65 Static / IP54 Dynamic
Vandal resistant: IK07
Certificates CE, FCC, RoHS
OS support Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7
MTBF >50000H
MTTR <30min

KeyWords:

103 keys mini keyboard with trackball ,mini steel trackball keyboard ,mini full size keyboard ,mini qwerty keyboard ,metal qwerty keyboard ,industrial qwerty keyboard
