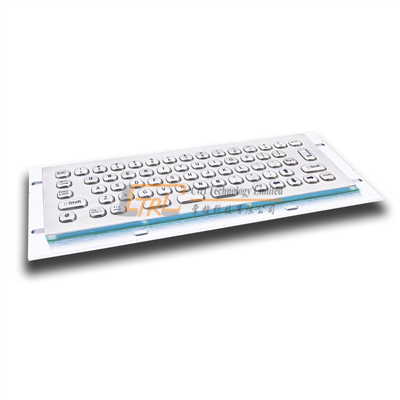

Mini size stainless steel kiosk keyboard

Categories:
Industrial Mini Keyboard

Model:
CT-S230KB

Application:
kiosk

Materials:
304 Stainless Steel

Port:
Shenzhen / Hongkong

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Mini keyboard without pointing device, trackball or touchpad version is also available.

Application: Self service Kiosk, information Kiosk, internet Kiosk, internet cafe, gaming Kiosk and industrial control machine etc.

Model No. CT-S230KB 　
Type Panel mounting MINI metal keyboard 　
Number of keys 66 keys 　
Dimensions Front panel: 230*87 mm
　 Back panel: 254*111 mm
Material SUS304 stainless steel 　
Layout Different languages are available 　
Interface (connection) USB or PS2 　
Lettering Etching and inking, lettering by laser is optional 　
Key contact technology Carbon on gold (silicon) 　
Key travel Approx. 1.5mm 　
Actuation force 1.2 ± 0 .1 N 　
Lifespan More than 10 million operations per key 　
Supply Voltage 5.0VDC±5% 　
Operating temperature 0°～+60° 　
Storage temperature -30°～+70° 　
Relative humidity 30%～90% 　
Protection level Waterproof / dustproof: IP65 Static / IP54 Dynamic
　 Vandal resistant: IK07
Certificates CE, FCC, RoHS 　
OS support Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7 　
MTBF >50000H 　
MTTR <30min 　

KeyWords:

mini stainless keyboard ,small kiosk keyboard ,usb mini keyboard ,compact metal keyboard ,small industrial keyboard ,small rugged keyboard
