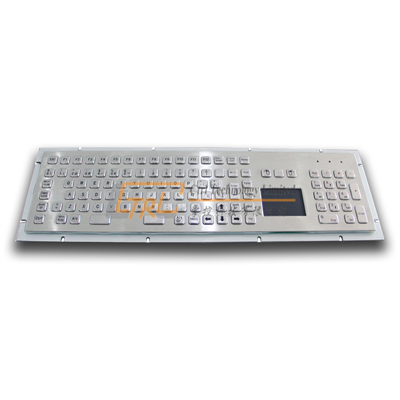

Panel mount full metal keyboard with touchpad for kiosk

Categories:
Metal Keyboard with Touchpad

Model:
CT-S478TP

Application:
Self service kiosk terminal

Materials:
Stainless steel fascia and keytops

Port:
Shenzhen / Hongkong.

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Rear panel mounted metal keyboard with touch pad / track pad.

Application: Self service Kiosk, information Kiosk, internet Kiosk, internet cafe, shopping mall kiosk, library kiosk, hospital kiosk, gaming Kiosk and industrial control machine etc.

Model No. CT-S478TP 　
Type Panel mounting metal keyboard with touchpad
Number of keys 104 keys 　
Dimensions Front panel: 478*135 mm
　 Touchpad 66*50 mm
　
Main Material SUS304 stainless steel fascia and keytops 　
Layout Different languages are available 　
Interface (connection) USB or PS2 　
Lettering Etching and inking, lettering by laser is optional 　
Key contact technology Carbon on gold (silicon) 　
Key travel 1.50 mm 　
Actuation force 0.6- 1.2 N 　
Lifespan More than 10 million operations per key 　
Supply Voltage 5.0VDC±5% 　
Operating temperature -10°～+50° 　
Storage temperature -40°～+80° 　
Relative humidity 30%～90% 　
Protection level Waterproof / dustproof: IP65 Static / IP54 Dynamic
　 Vandal resistant: IK07
Certificates CE, FCC, RoHS 　
OS support Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7 　
MTBF >50000H 　
MTTR <30min 　

KeyWords:

metal qwerty keyboard with touch pad ,waterproof metal keyboard with track pad ,qwerty touchpad keyboard ,104 keys touchpad keyboard ,china touchpad keyboard manufacturer ,stainless keyboard with trackpad

Save / Share:

Item not found?

Release purchase info immediately.

Please send your message to us

Details

* We will reply your inquiry to this Email as soon as we see it(All fields are required.)

E-mail
	/
Title
Content	Input your info here Agree to use terms of service

Sales Director

Send

Model No.	CT-S478TP
Type	Panel mounting metal keyboard with touchpad
Number of keys	104 keys
Dimensions	Front panel:	478*135 mm
	Touchpad	66*50 mm

Main Material	SUS304 stainless steel fascia and keytops
Layout	Different languages are available
Interface (connection)	USB or PS2
Lettering	Etching and inking, lettering by laser is optional
Key contact technology	Carbon on gold (silicon)
Key travel	1.50 mm
Actuation force	0.6- 1.2 N
Lifespan	More than 10 million operations per key
Supply Voltage	5.0VDC±5%
Operating temperature	-10°～+50°
Storage temperature	-40°～+80°
Relative humidity	30%～90%
Protection level	Waterproof / dustproof:	IP65 Static / IP54 Dynamic
	Vandal resistant:	IK07
Certificates	CE, FCC, RoHS
OS support	Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7
MTBF	>50000H
MTTR	<30min
