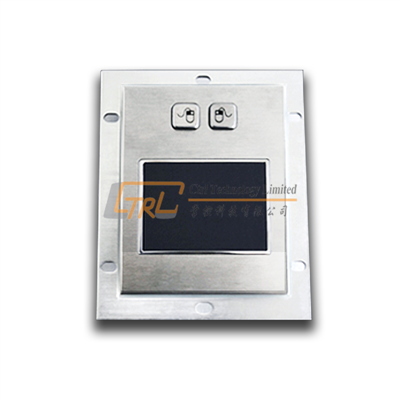

Panel mount touchpad, stainless steel fascia

Panel mount touchpad, stainless steel fascia

Panel mount touchpad, stainless steel fascia
Panel mount touchpad, stainless steel fascia
  • Categories:
  • Industrial Pointing Device
  • Model:
  • CT-S38TP
  • Tracking Method:
  • TOUCHPAD
  • Application:
  • self service kiosk and industrial control
  • Port:
  • Shenzhen / Hongkong
  • Terms of Payment:
  • L/C,Western Union,T/T
  • Update Time:
  • 07-31-2015
Contact Now
Detailed Info
Model No.CT-S38TP　
TypePanel mounting metal touch pad　
DimensionsFront panel:83*110 mm
　Touch pad:60*45 mm
MaterialSUS304 stainless steel (case)　
Interface (connection)USB or PS2　
Lettering on keysEtching and inking,  lettering by laser is optional　
Key contact technologyCarbon on Gold (Silicon rubber)　
Key travelApprox. 1.5mm　
LifespanMore than 10 million operations per key　
Battery lifetime> 10 years (without external power supply)　
Supply Voltage5.0VDC±5%　
Operating temperature0°～+60°　
Storage temperature-30°～+70°　
Relative humidity30%～90%　
Protection levelWaterproof / dustproof:IP65 Static / IP54 Dynamic
　Vandal resistant:IK07
CertificatesCE, FCC, RoHS　
OS supportWindows95/98/NT/ME/2000/2003/XP/Vista/WIN7　
MTBF>50000H　
MTTR<30min　
Panel mount touchpad, stainless steel fascia
  • Panel mount touchpad, stainless steel fascia
KeyWords:
metal touchpad ,industrial touchpad ,USB touchpad ,kiosk touchpad
