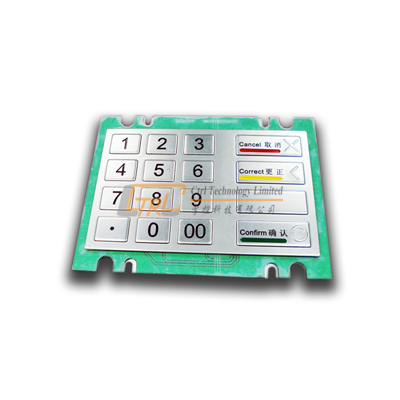

Rugged ATM kiosk pinpad, metal 16 keys keypad

Download DOC:

Categories:
Metal Numeric Keypad

Model:
CT-S160KP

Application:
kiosk

Materials:
Stainless steel

Port:
Shenzhen / Hongkong

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Stainless steel waterproof, dustproof, anti-vandal numeric keypad, special designed for atm, kiosk, access control and other industrial control input.

Model No.	CT-S160KP
Type	Panel mounting metal numeric keypad
Number of keys	16 keys (10 number keys, 6 function keys)
Dimensions	Front panel	160*102.5 mm
Material	SUS304 stainless steel
Layout	Different languages are available
Interface (connection)	USB or PS2
Matrix	4x4
Lettering	Etching and inking, lettering by laser is optional
Key contact technology	Gold on gold (metal dome)
Key travel	Approx. 0.45mm
Actuation force	1.2 ± 0 .1 N
Lifespan	More than 10 million operations per key
Battery lifetime	> 10 years (without external power supply)
Supply Voltage	5.0VDC±5%
Operating temperature	0°～+60°
Storage temperature	-30°～+70°
Relative humidity	30%～90%
Protection level	Waterproof / dustproof	IP65 Static / IP54 Dynamic
	Vandal resistant	IK07
Certificates	CE, FCC, RoHS
OS support	Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7
MTBF	>50000H
MTTR	<30min
