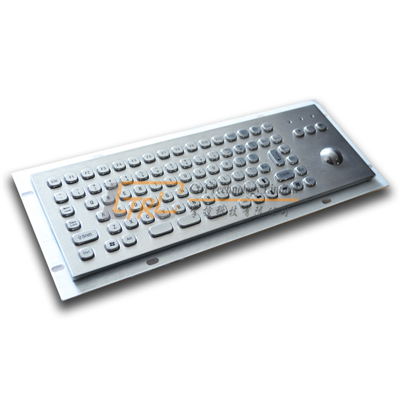

Small Size Industrial Keyboard with Trackball for Info Terminal

Categories:
Industrial Mini Keyboard

Model:
CT-S300TB

Application:
self service kiosk terminal

Materials:
304 Stainless Steel

Port:
Shenzhen, China

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Application: Self service Kiosk, information Kiosk, internet Kiosk, internet cafe, gaming Kiosk and industrial control machine etc.

Model No. CT-S300TB
Type Mini type panel mounting keyboard with trackball
Number of keys 86 keys
Dimensions Front panel: 300*103.5 mm
Overall: 324*127.5 mm
Diameter of trackball: 25 mm
Main Material SUS304 stainless steel
Layout Different languages are available
Interface (connection) USB or PS2
Lettering Etching and inking, lettering by laser is optional
Key contact technology Carbon on gold (silicon)
Key travel 1.50 mm
Actuation force 0.6- 1.2 N
Lifespan More than 10 million operations per key
Supply Voltage 5.0VDC±5%
Operating temperature -10°～+50°
Storage temperature -40°～+80°
Relative humidity 30%～90%
Protection level Waterproof / dustproof: IP65 Static / IP54 Dynamic
Vandal resistant: IK07
Certificates CE, FCC, RoHS
OS support Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7
MTBF >50000H
MTTR <30min

KeyWords:

small compact trackball keyboard ,small metallic kiosk keyboard ,IP65 mini stainless keyboard ,panel mount mini keyboard ,mini silicon keyboard ,mini rugged keyboard

Save / Share:

Item not found?

Release purchase info immediately.

Please send your message to us

Details

* We will reply your inquiry to this Email as soon as we see it(All fields are required.)

E-mail
	/
Title
Content	Input your info here Agree to use terms of service

Sales Director

Send

Model No.	CT-S300TB
Type	Mini type panel mounting keyboard with trackball
Number of keys	86 keys
Dimensions	Front panel:	300*103.5 mm
Overall:	324*127.5 mm
Diameter of trackball:	25 mm
Main Material	SUS304 stainless steel
Layout	Different languages are available
Interface (connection)	USB or PS2
Lettering	Etching and inking, lettering by laser is optional
Key contact technology	Carbon on gold (silicon)
Key travel	1.50 mm
Actuation force	0.6- 1.2 N
Lifespan	More than 10 million operations per key
Supply Voltage	5.0VDC±5%
Operating temperature	-10°～+50°
Storage temperature	-40°～+80°
Relative humidity	30%～90%
Protection level	Waterproof / dustproof:	IP65 Static / IP54 Dynamic
Vandal resistant:	IK07
Certificates	CE, FCC, RoHS
OS support	Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7
MTBF	>50000H
MTTR	<30min
