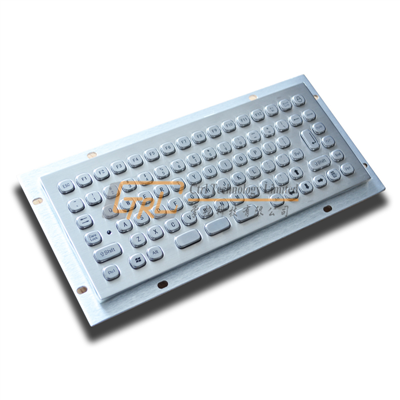

Small keyboard made of stainless steel

Categories:
Industrial Mini Keyboard

Model:
CT-S244KB

Application:
self service kiosk terminal

Materials:
304 Stainless Steel

Port:
Shenzhen, China

Terms of Payment:
L/C,Western Union,T/T

Update Time:
07-31-2015

Contact Now

Add to Cart

Detailed Info

Mini keyboard without pointing device, trackball or touchpad version is also available.

Application: Self service Kiosk, information Kiosk, internet Kiosk, internet cafe, gaming Kiosk and industrial control machine etc.

Model No. CT-S244KB 　
Type Panel mounting MINI metal keyboard 　
Number of keys 86 keys 　
Dimensions Front panel: 244.20*103.50 mm
　 Back panel: 268*127.50 mm
Material SUS304 stainless steel 　
Layout Different languages are available 　
Interface (connection) USB or PS2 　
Lettering Etching and inking, lettering by laser is optional 　
Key contact technology Carbon on gold (silicon) 　
Key travel Approx. 1.5mm 　
Actuation force 1.2 ± 0 .1 N 　
Lifespan More than 10 million operations per key 　
Supply Voltage 5.0VDC±5% 　
Operating temperature 0°～+60° 　
Storage temperature -30°～+70° 　
Relative humidity 30%～90% 　
Protection level Waterproof / dustproof: IP65 Static / IP54 Dynamic
　 Vandal resistant: IK07
Certificates CE, FCC, RoHS 　
OS support Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7 　
MTBF >50000H 　
MTTR <30min 　

KeyWords:

small kiosk keyboard ,small industrial keyboard ,mini stainless keyboard ,small rugged keyboard ,usb mini keyboard ,compact metal keyboard

Save / Share:

Item not found?

Release purchase info immediately.

Please send your message to us

Details

* We will reply your inquiry to this Email as soon as we see it(All fields are required.)

E-mail
	/
Title
Content	Input your info here Agree to use terms of service

Sales Director

Send

Model No.	CT-S244KB
Type	Panel mounting MINI metal keyboard
Number of keys	86 keys
Dimensions	Front panel:	244.20*103.50 mm
	Back panel:	268*127.50 mm
Material	SUS304 stainless steel
Layout	Different languages are available
Interface (connection)	USB or PS2
Lettering	Etching and inking, lettering by laser is optional
Key contact technology	Carbon on gold (silicon)
Key travel	Approx. 1.5mm
Actuation force	1.2 ± 0 .1 N
Lifespan	More than 10 million operations per key
Supply Voltage	5.0VDC±5%
Operating temperature	0°～+60°
Storage temperature	-30°～+70°
Relative humidity	30%～90%
Protection level	Waterproof / dustproof:	IP65 Static / IP54 Dynamic
	Vandal resistant:	IK07
Certificates	CE, FCC, RoHS
OS support	Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7
MTBF	>50000H
MTTR	<30min
